Shalford Pipe Crossing

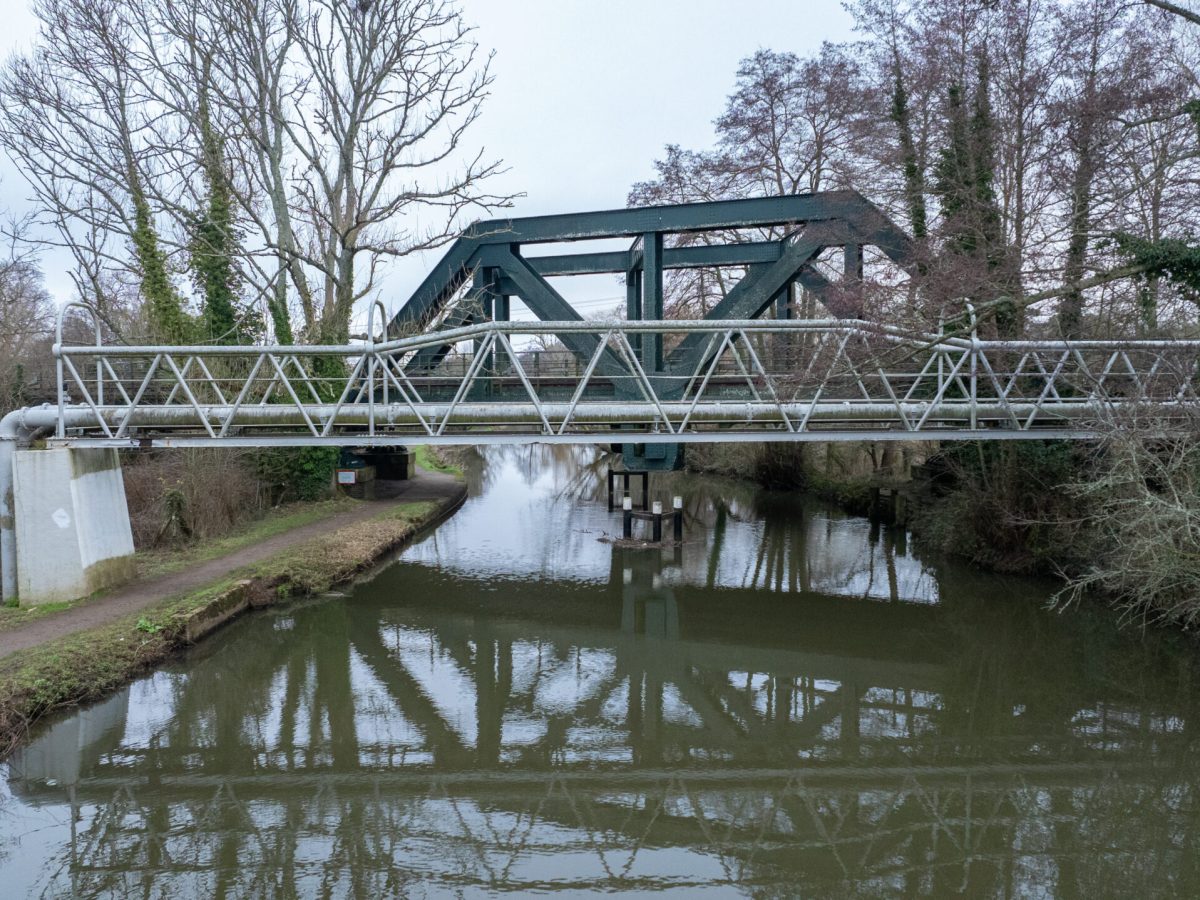

Located over the River Wey, Shalford, the pipe bridge supports 1no 12” IP Gas Main and 2no 12” Water Mains. Due to the location of the bridge, access was only possible via pontoon.

Specialist works delivered in a live infrastructure setting

Located over the River Wey, Shalford, the pipe bridge supports 1no 12” IP Gas Main and 2no 12” Water Mains. Due to the location of the bridge, access was only possible via pontoon. All materials, plant and equipment were moved to the work location via a pontoon. The bridge, a steel truss structure, along with the 3 mains, was fully blasted to SA2.5 and new coatings applied to GIS/PA10. New pipe supports were fabricated and installed to the gas main, replacing the old rotten wooden support blocks.
Client

SGN & THAMES WATER

Location

Shalford

Service Provided

Pipe crossing works; access and asset protection.

Shalford Pipe Crossing
Project Video

Watch the Shalford Pipe Crossing project video

View footage from the Shalford Pipe Crossing project, showing the site environment, access requirements and specialist works carried out by W. G. Beaumont
